plot_function

Network visualization orchestration module.

Provides the main plotting interface for pathpyG networks with automatic backend selection and plot type detection. Serves as the unified entry point for all visualization functionality across different backends and graph types.

Key Features

• Multi-backend support (matplotlib, TikZ, d3.js, manim)
• Automatic plot type detection (static vs temporal)
• File format-based backend inference
• Unified plotting interface for all graph types

Supported Backends

• matplotlib: PNG, JPG plots for static visualization
• TikZ: PDF, SVG, TEX for publication-quality vector graphics
• d3.js: HTML for interactive web visualization
• manim: MP4, GIF for animated temporal networks

Examples:

Plot a static network with the matplotlib backend and save it as network.png:

>>> import pathpyG as pp
>>> g = pp.Graph.from_edge_list([('a', 'b'), ('b', 'c')])
>>> pp.plot(g, filename='network.png')

Plot a temporal network with the default d3.js backend:

>>> import pathpyG as pp
>>> tg = pp.TemporalGraph.from_edge_list([('a', 'b', 1), ('b', 'c', 2), ('a', 'c', 3)])
>>> pp.plot(tg)

```

Backend Selection

Backends are auto-selected from file extensions or can be explicitly specified via the backend parameter.

Backends

Bases: str, enum.Enum

Enumeration of supported visualization backends.

Defines the available backend engines for network visualization, each optimized for different output formats and use cases.

Source code in src/pathpyG/visualisations/plot_function.py

class Backends(str, Enum):
    """Enumeration of supported visualization backends.

    Defines the available backend engines for network visualization,
    each optimized for different output formats and use cases.
    """
    d3js = "d3js"
    matplotlib = "matplotlib"
    tikz = "tikz"
    manim = "manim"

    @staticmethod
    def is_backend(backend: str) -> bool:
        """Check if string is a valid backend identifier.

        Args:
            backend: Backend name to validate

        Returns:
            True if backend is supported, False otherwise
        """
        return backend in Backends.__members__.values()

is_backend staticmethod

Check if string is a valid backend identifier.

Parameters:

Name	Type	Description	Default
backend	str	Backend name to validate	required

Returns:

Type	Description
bool	True if backend is supported, False otherwise

Source code in src/pathpyG/visualisations/plot_function.py

@staticmethod
def is_backend(backend: str) -> bool:
    """Check if string is a valid backend identifier.

    Args:
        backend: Backend name to validate

    Returns:
        True if backend is supported, False otherwise
    """
    return backend in Backends.__members__.values()

plot

Make plot of pathpyG objects.

Creates and displays a plot for a given pathpyG object. This function can generate different types of network plots based on the nature of the input data and specified plot kind.

The function dynamically determines the plot type if not explicitly provided, based on the input data type. It supports static network plots for Graph objects, temporal network plots for TemporalGraph objects, and potentially other types if specified in kind.

Parameters:

Name	Type	Description	Default
graph	pathpyG.core.graph.Graph	A pathpyG object representing the network data. This can be a Graph or TemporalGraph object, or other compatible types.	required
kind	typing.Optional[str]	A string keyword defining the type of plot to generate. Options include: 'static', and 'temporal'.	None
show_labels		Whether to display node labels (None uses graph.mapping.has_ids)	None
**kwargs	typing.Any	Backend-specific plotting parameters including: filename: Output file path (triggers backend auto-selection); backend: Explicit backend choice; layout: Layout algorithm name; style: Various styling parameters (colors, sizes, etc.)	{}

Returns:

Type	Description
pathpyG.visualisations.plot_backend.PlotBackend	Configured backend instance ready for display or saving

Raises:

Type	Description
NotImplementedError	If graph type cannot be auto-detected for plotting
KeyError	If specified backend is not supported
ImportError	If required backend cannot be loaded

Examples:

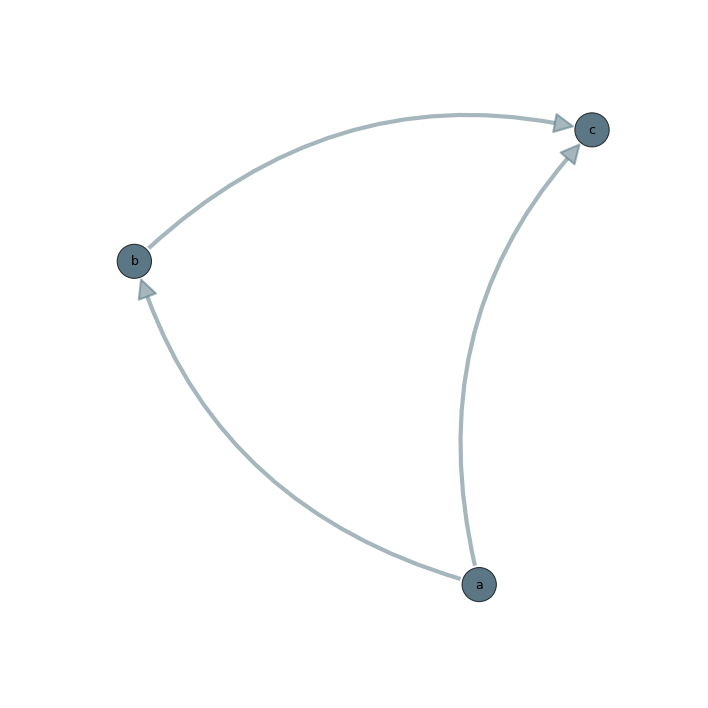

This will create a static network plot of the graph and save it to 'graph.png'.

>>> import pathpyG as pp
>>> graph = pp.Graph.from_edge_list([["a", "b"], ["b", "c"], ["a", "c"]])
>>> pp.plot(graph, kind="static", filename="graph.png")

Note

• If a 'filename' is provided in kwargs, the plot will be saved to that file. Otherwise, it will be displayed using plt.show().
• The function's behavior and the available options in kwargs might change based on the type of plot being generated.

Backend Auto-Selection

When filename is provided, backend is inferred from extension:

Extension	Backend	Best For
.png, .jpg	matplotlib	Quick visualization
.pdf, .svg, .tex	tikz	Publication quality
.html	d3js	Interactive exploration
.mp4, .gif	manim	Animated sequences

Source code in src/pathpyG/visualisations/plot_function.py

def plot(graph: Graph, kind: Optional[str] = None, show_labels=None, **kwargs: Any) -> PlotBackend:
    """Make plot of pathpyG objects.

    Creates and displays a plot for a given `pathpyG` object. This function can
    generate different types of network plots based on the nature of the input
    data and specified plot kind.

    The function dynamically determines the plot type if not explicitly
    provided, based on the input data type. It supports static network plots
    for `Graph` objects, temporal network plots for `TemporalGraph` objects,
    and potentially other types if specified in `kind`.

    Args:
        graph: A `pathpyG` object representing the network data. This can
            be a `Graph` or `TemporalGraph` object, or other compatible types.
        kind: A string keyword defining the type of plot to generate. Options include:
            **'static'**, and **'temporal'**.
        show_labels: Whether to display node labels (None uses graph.mapping.has_ids)
        **kwargs: Backend-specific plotting parameters including:
            **filename**: Output file path (triggers backend auto-selection);
            **backend**: Explicit backend choice;
            **layout**: Layout algorithm name;
            **style**: Various styling parameters (colors, sizes, etc.)

    Returns:
        Configured backend instance ready for display or saving

    Raises:
        NotImplementedError: If graph type cannot be auto-detected for plotting
        KeyError: If specified backend is not supported
        ImportError: If required backend cannot be loaded

    Examples:
        This will create a static network plot of the `graph` and save it to 'graph.png'.

        >>> import pathpyG as pp
        >>> graph = pp.Graph.from_edge_list([["a", "b"], ["b", "c"], ["a", "c"]])
        >>> pp.plot(graph, kind="static", filename="graph.png")

        <img src="../plot/graph.png" alt="Example static network plot" width="550"/>

    Note:
        - If a 'filename' is provided in `kwargs`, the plot will be saved to
          that file. Otherwise, it will be displayed using `plt.show()`.
        - The function's behavior and the available options in `kwargs` might
          change based on the type of plot being generated.

    !!! abstract "Backend Auto-Selection"
        When filename is provided, backend is inferred from extension:

        | Extension | Backend | Best For |
        |-----------|---------|----------|
        | .png, .jpg | matplotlib | Quick visualization |
        | .pdf, .svg, .tex | tikz | Publication quality |
        | .html | d3js | Interactive exploration |
        | .mp4, .gif | manim | Animated sequences |
    """
    if kind is None:
        if isinstance(graph, TemporalGraph):
            kind = "temporal"
        elif isinstance(graph, Graph):
            kind = "static"
        else:
            raise NotImplementedError

    if show_labels is None:
        show_labels = graph.mapping.has_ids

    filename = kwargs.pop("filename", None)
    _backend: str = kwargs.pop("backend", None)

    plot_backend_class = _get_plot_backend(
        backend=_backend, filename=filename, default=config.get("visualisation").get("default_backend")  # type: ignore[union-attr]
    )

    # Check if backend is d3js and set layout to None if not specifically given as argument
    if plot_backend_class == D3jsBackend:
        if "layout" not in kwargs:
            kwargs["layout"] = None

    plt = PLOT_CLASSES[kind](graph, **kwargs)
    plot_backend = plot_backend_class(plt, show_labels=show_labels)
    if filename:
        plot_backend.save(filename)
    else:
        if config["environment"]["interactive"]:
            plot_backend.show()
    return plot_backend
